Introduction to Concrete Unit Weight Testing
The concrete unit weight test stands as one of the most fundamental and crucial quality control procedures in construction engineering and materials testing. This comprehensive testing method determines the mass per unit volume of freshly mixed concrete, providing essential data that directly impacts the structural integrity, durability, and overall performance of concrete structures. Understanding and properly executing this test ensures that construction projects meet specified requirements and maintain consistent quality throughout the building process.
The significance of unit weight testing extends far beyond simple measurement procedures. It serves as a critical indicator of concrete composition, mixing efficiency, and potential issues that may arise during construction. Engineers and quality control professionals rely on this test to verify that concrete mixtures conform to design specifications, contain the appropriate proportions of constituent materials, and will achieve the desired strength and durability characteristics once cured.
Modern construction projects demand precise control over concrete properties, making unit weight testing an indispensable tool for ensuring project success. The test results provide immediate feedback about the concrete mixture, allowing for real-time adjustments and corrections before placement. This proactive approach prevents costly remedial work and ensures that structures meet their intended design life and performance criteria.
Understanding the Fundamentals of Unit Weight
Unit weight, also known as bulk density or fresh density, represents the mass of concrete contained within a specific volume, typically expressed in pounds per cubic foot or kilograms per cubic meter. This measurement reflects the combined mass of all constituent materials including cement, aggregates, water, and any admixtures present in the mixture. The unit weight directly correlates with the density and compactness of the concrete, providing insights into its potential strength development and structural performance.
The theoretical unit weight of concrete can be calculated based on the known quantities and specific gravities of individual ingredients used in the mixture design. However, actual field measurements often differ from theoretical values due to factors such as air entrainment, consolidation effectiveness, aggregate variations, and mixing procedures. These differences highlight the importance of conducting physical unit weight tests to verify actual concrete properties.
Various factors influence concrete unit weight including aggregate type and gradation, cement content, water-cement ratio, presence of admixtures, and degree of consolidation. Dense aggregates such as crushed stone typically produce higher unit weights compared to lightweight aggregates like expanded clay or shale. Similarly, well-graded aggregates that pack efficiently result in higher densities than poorly graded materials with significant voids.
The relationship between unit weight and concrete strength, while not directly proportional, generally shows positive correlation. Higher unit weights often indicate better consolidation, reduced air voids, and more efficient packing of constituent materials, all of which contribute to improved strength development. However, this relationship must be considered alongside other factors such as water-cement ratio and curing conditions.
Equipment and Materials Required
Conducting accurate unit weight tests requires specific equipment designed to provide precise measurements and consistent results. The primary equipment includes a calibrated balance or scale capable of measuring to the nearest 0.1 pound or 0.05 kilogram, depending on the units used. This balance must have sufficient capacity to weigh the filled container plus concrete sample, typically requiring a minimum capacity of 50 pounds or 25 kilograms for standard test containers.
The measuring container represents the most critical component of the testing setup. Standard containers are manufactured from steel, aluminum, or other rigid materials and must meet specific dimensional tolerances. Common container sizes include 0.5 cubic foot capacity for routine testing and smaller 0.25 cubic foot containers for lightweight concrete applications. The container must have smooth interior surfaces, straight sides, and a flat bottom to ensure accurate volume measurements.
Consolidation equipment varies depending on the concrete type and consistency being tested. For standard concrete mixtures, a steel tamping rod measuring 5/8 inch in diameter and approximately 24 inches long with rounded ends is required. The rod must be straight and free from damage that could affect consolidation effectiveness. For flowing or self-consolidating concrete, mechanical vibration equipment may be necessary to achieve proper consolidation without segregation.
Additional support equipment includes a strike-off plate or straightedge for leveling the concrete surface, cleaning materials for maintaining equipment condition, and appropriate safety equipment for personnel protection. The strike-off plate should be made from steel or similar rigid material and must be straight and long enough to span the container opening with adequate overlap for effective use.
Calibration equipment ensures measurement accuracy throughout the testing process. This includes certified weights for balance verification, dimensional measuring tools for container volume confirmation, and water for periodic calibration checks. All calibration equipment must be traceable to national standards and maintained according to established quality assurance procedures.
Pre-Test Preparation and Setup
Proper preparation forms the foundation of accurate unit weight testing and begins well before concrete sampling. The testing area should be level, stable, and protected from environmental conditions that could affect measurements. Temperature variations, wind, and moisture can all impact test results, making controlled testing conditions essential for reliable data collection.
Equipment calibration represents the first critical step in test preparation. The balance or scale must be verified for accuracy using certified weights that span the expected measurement range. This calibration should occur at the beginning of each testing session and be documented according to quality assurance requirements. Any deviations from expected readings must be corrected before proceeding with testing.
Container preparation involves thorough cleaning to remove any residual materials from previous tests, followed by careful inspection for damage or wear that could affect volume accuracy. The container interior should be lightly coated with a thin film of oil or similar release agent to prevent concrete adhesion and facilitate easy removal after testing. However, excess release agent must be removed as it can affect the concrete mixture and test results.
Volume verification ensures that the container capacity remains within specified tolerances. This process involves filling the container with water and measuring the exact volume, then comparing results to the container’s certified capacity. Any significant deviations indicate the need for container repair or replacement before proceeding with concrete testing.
Sampling procedures must be established to ensure representative concrete specimens. The sampling location, timing, and technique all influence test accuracy and must be carefully controlled. Samples should be obtained from multiple locations within the concrete batch and combined to create a representative specimen for testing.
Detailed Testing Procedure
The concrete unit weight test procedure follows a systematic sequence designed to produce accurate and repeatable results. Beginning with proper concrete sampling, the procedure requires obtaining a representative sample of fresh concrete immediately after mixing and transport to the testing location. The sample volume should be sufficient to fill the testing container with approximately 10 percent excess to allow for proper consolidation and finishing.
Initial placement of concrete into the measuring container occurs in layers to ensure uniform distribution and effective consolidation. For containers with 0.5 cubic foot capacity, three approximately equal layers are typically used, while smaller containers may require only two layers. Each layer should be distributed evenly across the container cross-section before consolidation begins.
Consolidation technique varies based on concrete consistency and type. For conventional concrete mixtures with slump values between 1 and 4 inches, mechanical tamping using the specified tamping rod provides effective consolidation. The rod should penetrate the full depth of the layer being consolidated plus approximately 1 inch into the underlying layer. Each layer requires a specified number of tamping strokes distributed uniformly across the surface area.
The number of tamping strokes depends on container size and layer thickness. Standard procedures typically specify 25 strokes per layer for 0.5 cubic foot containers, with strokes applied in a systematic pattern to ensure complete coverage. The tamping force should be sufficient to eliminate air voids without causing segregation of the concrete mixture.
For concrete mixtures with higher slump values or self-consolidating properties, vibration consolidation may be more appropriate than mechanical tamping. External vibration applied to the container walls provides effective consolidation while minimizing segregation risks. The vibration duration should be sufficient to achieve complete consolidation as evidenced by the cessation of air bubble release and achievement of a level surface.

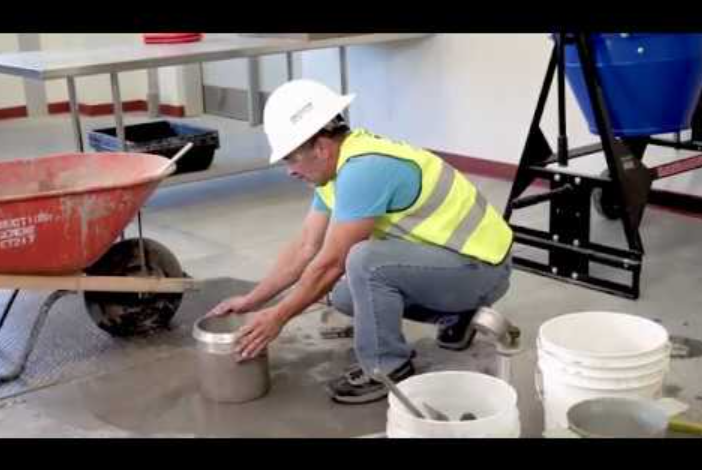

Surface finishing follows consolidation and involves striking off excess concrete to create a level surface flush with the container rim. The strike-off process should be performed with a sawing motion using the straightedge, allowing excess concrete to flow off the container sides. Any surface voids or depressions should be filled with small amounts of concrete and re-struck to achieve a smooth, level finish.
Calculations and Data Analysis
The unit weight calculation process involves precise measurement and mathematical computation to determine the concrete density. The fundamental calculation requires dividing the net weight of concrete by the known container volume, resulting in unit weight expressed in the appropriate units of measurement. This seemingly simple calculation requires careful attention to detail and proper handling of measurement uncertainties.
Net concrete weight determination begins with measuring the total weight of the filled container and subtracting the previously determined container weight. This calculation must account for any additional materials such as strike-off plates or consolidation tools that may remain with the container during weighing. The balance accuracy and environmental conditions during weighing can significantly impact the precision of this measurement.
Volume corrections may be necessary when containers have been damaged or worn through use. Standard container volumes are established during initial calibration, but periodic verification ensures continued accuracy. Temperature effects on container dimensions are typically negligible for standard testing conditions but may require consideration in extreme environments.
The basic unit weight calculation follows the formula: Unit Weight equals Net Concrete Weight divided by Container Volume. For example, if a concrete sample weighs 60.5 pounds net in a 0.5 cubic foot container, the unit weight would be 121 pounds per cubic foot. This value should be reported to the appropriate number of significant figures based on measurement precision.
Statistical analysis of test results provides additional insights into concrete quality and consistency. Multiple tests from the same batch allow calculation of average values, standard deviation, and coefficient of variation. These statistical measures help identify potential quality issues and verify that concrete production meets specified tolerances.
Comparison with theoretical unit weight values calculated from mixture proportions helps validate test results and identify potential issues with concrete production or testing procedures. Significant deviations between theoretical and measured values may indicate problems with aggregate moisture content, batching accuracy, or consolidation effectiveness.
See also: Understanding the Importance of CNC Machining Service in Manufacturing
Quality Control and Common Issues
Quality control in concrete unit weight testing encompasses multiple aspects of the testing process, from equipment maintenance to procedural compliance. Regular calibration of measuring equipment ensures continued accuracy, while standardized procedures promote consistency across different operators and testing sessions. Documentation requirements provide traceability and support quality assurance programs throughout construction projects.
Common testing errors can significantly impact result accuracy and lead to incorrect conclusions about concrete quality. Inadequate consolidation represents one of the most frequent issues, resulting in lower unit weight values due to trapped air voids. This problem often stems from insufficient tamping effort, improper rod technique, or failure to achieve complete penetration into underlying layers.
Over-consolidation presents the opposite problem, where excessive tamping or vibration causes segregation of the concrete mixture. This condition typically results in higher unit weight values as coarse aggregate settles to the bottom of the container while cement paste rises to the surface. Proper consolidation technique requires achieving complete compaction without causing segregation.
Container condition affects test accuracy and requires regular inspection and maintenance. Damaged containers with dents, corrosion, or worn surfaces can trap air or concrete, leading to measurement errors. Interior surface roughness or concrete buildup similarly impacts volume accuracy and must be addressed through proper cleaning and maintenance procedures.
Environmental factors such as temperature, humidity, and wind can influence test results and require consideration during testing. High temperatures may accelerate concrete setting, making consolidation more difficult and potentially affecting unit weight measurements. Wind can cause rapid moisture loss from exposed concrete surfaces, while extreme temperatures may affect balance accuracy.
Operator training and certification ensure consistent application of testing procedures and proper interpretation of results. Regular training updates help maintain proficiency with evolving standards and techniques, while certification programs verify competency in critical testing skills. Standardized training programs promote consistency across different testing personnel and locations.
Results Interpretation and Reporting
Proper interpretation of unit weight test results requires understanding the relationship between measured values and concrete quality indicators. Unit weight serves as one component of a comprehensive quality control program and should be evaluated alongside other test results such as slump, air content, and compressive strength. This integrated approach provides a complete picture of concrete quality and performance potential.
Acceptance criteria for unit weight typically specify allowable ranges based on mixture design characteristics and project requirements. Standard specifications often establish minimum unit weight values to ensure adequate density and consolidation, while maximum values may be specified to control material costs or structural loading. These criteria should be clearly defined in project specifications and consistently applied throughout construction.
Trend analysis of unit weight data over time reveals patterns that may indicate changes in material properties, batching accuracy, or mixing effectiveness. Gradual changes in unit weight values may suggest aggregate moisture variations, cement characteristics changes, or equipment wear. Identifying these trends early allows for corrective actions before significant quality issues develop.
Documentation requirements for unit weight testing include recording all measurement data, calculation results, and observations about testing conditions or unusual circumstances. Test reports should clearly identify the concrete source, mixture identification, sampling location and time, testing personnel, and equipment used. This comprehensive documentation supports quality assurance programs and provides valuable data for future reference.
Corrective actions may be necessary when unit weight results fall outside acceptable limits or show concerning trends. These actions might include adjusting mixture proportions, modifying consolidation procedures, or investigating potential equipment problems. The specific response depends on the nature and magnitude of the deviation and should be guided by established quality control procedures.
Communication of test results to appropriate project personnel ensures timely response to quality issues and maintains project quality standards. Results should be reported promptly and clearly, with appropriate context about acceptance criteria and recommended actions. Effective communication promotes collaboration between testing personnel, concrete producers, and construction teams.
Standards and Specifications
The concrete unit weight test is governed by various national and international standards that establish standardized procedures, equipment requirements, and reporting protocols. In the United States, ASTM C138 provides the primary standard for this test method, specifying detailed procedures for equipment calibration, test execution, and result calculation. This standard ensures consistency and comparability of results across different laboratories and testing organizations.
International standards such as those published by the International Organization for Standardization provide similar guidance for global applications. These standards often include provisions for different measurement systems, environmental conditions, and regional practices while maintaining fundamental test principles. Understanding applicable standards is essential for ensuring test validity and regulatory compliance.
Equipment specifications within these standards address dimensional tolerances, material requirements, and performance criteria for all testing apparatus. Container dimensions must meet specific tolerances to ensure volume accuracy, while balance specifications establish minimum precision and capacity requirements. Compliance with these specifications is typically verified through regular calibration and certification programs.
Procedural requirements cover all aspects of test execution from sampling through result reporting. These procedures specify timing requirements, consolidation methods, measurement techniques, and calculation procedures. Adherence to standardized procedures ensures test reliability and enables meaningful comparison of results from different sources.
Quality assurance requirements within testing standards address personnel qualifications, equipment maintenance, calibration procedures, and documentation requirements. These provisions support laboratory accreditation programs and help ensure continued test accuracy and reliability. Regular compliance audits verify adherence to standard requirements and identify areas for improvement.
Updates to testing standards reflect evolving technology, improved understanding of concrete behavior, and changes in construction practices. Testing organizations must stay current with standard revisions and implement necessary changes to maintain compliance. This ongoing evolution helps ensure that testing methods remain relevant and effective for modern concrete applications.
Practical Applications in Construction
The concrete unit weight test finds widespread application throughout various phases of construction projects, from initial mixture design verification to final quality acceptance. During mixture development, unit weight measurements help optimize aggregate gradations, confirm theoretical calculations, and establish baseline values for production control. This early application ensures that mixture designs will produce concrete with desired density characteristics.
Production quality control represents the most common application of unit weight testing in construction projects. Regular testing during concrete production provides immediate feedback about mixture consistency, batching accuracy, and potential quality issues. This real-time monitoring allows for prompt corrective actions and helps maintain consistent concrete quality throughout construction.
Acceptance testing often includes unit weight measurements as part of comprehensive concrete evaluation programs. These tests provide additional verification that delivered concrete meets project specifications and design requirements. Combined with strength testing and other quality measures, unit weight data supports confident acceptance decisions for concrete placements.
Troubleshooting concrete problems frequently involves unit weight testing to identify potential causes of performance issues. Low unit weight values may indicate inadequate consolidation, excessive air entrainment, or aggregate deficiencies. Conversely, unusually high values might suggest over-consolidation, segregation, or batching errors. This diagnostic capability makes unit weight testing valuable for problem resolution.
Special applications include testing of lightweight concrete, where unit weight directly relates to structural efficiency and thermal performance. These applications often require modified testing procedures and specialized equipment to accommodate different concrete characteristics and performance requirements. Understanding these variations is essential for effective testing in specialized applications.
Research and development activities rely on unit weight testing to evaluate new materials, mixture designs, and construction techniques. This testing provides fundamental data about concrete behavior and helps establish correlations between unit weight and other performance measures. Research applications often require enhanced precision and documentation compared to routine quality control testing.
Certified Material Testing Products (Certified MTP) is a leading supplier of construction materials testing equipment and laboratory supplies in the United States. They offer a comprehensive range of products for testing concrete, asphalt, aggregate, soil, and cement, catering to both field and laboratory applications. However, regardless of whether they are preferred or not, the underlying concept behind these tools is similar: achieving a polished, shiny, and permanent effect. Whether new to stucco or a seasoned pro, investing in quality tools and learning the nuances of their use is what will help you perfect your craft.
Frequently Asked Questions
What is the typical unit weight range for normal concrete?
Normal weight concrete typically exhibits unit weights ranging from 140 to 150 pounds per cubic foot (2240 to 2400 kilograms per cubic meter). This range reflects variations in aggregate type, mixture proportions, and consolidation effectiveness. Dense aggregates like crushed granite produce values at the higher end of this range, while lighter aggregates result in lower unit weights. Properly consolidated concrete with standard portland cement and normal aggregates typically falls within 143 to 147 pounds per cubic foot.
How often should unit weight tests be performed during concrete placement?
The frequency of unit weight testing depends on project requirements, concrete volume, and quality control specifications. For most construction projects, one test per 150 cubic yards of concrete or per day of placement, whichever is more frequent, provides adequate quality control. Critical structural elements may require more frequent testing, while smaller projects might use reduced frequencies. Project specifications typically establish specific testing frequencies based on structural importance and quality requirements.
What causes unit weight test results to be lower than expected?
Lower than expected unit weight values typically result from inadequate consolidation, excessive air entrainment, or aggregate deficiencies. Insufficient tamping or vibration leaves air voids within the concrete, reducing overall density. High air content from chemical admixtures or mixing procedures similarly reduces unit weight. Lightweight contamination in aggregates, high aggregate absorption, or batching errors can also contribute to lower values. Environmental factors such as rapid moisture loss may also affect results.
Can unit weight testing predict concrete strength?
While unit weight correlates generally with concrete strength, it cannot accurately predict specific strength values. Higher unit weights typically indicate better consolidation and reduced void content, which generally support strength development. However, strength depends primarily on water-cement ratio, cement quality, and curing conditions rather than density alone. Unit weight serves as a quality indicator but should not be used as a substitute for direct strength testing when strength verification is required.
What equipment maintenance is required for accurate testing?
Regular equipment maintenance includes daily cleaning of containers and tamping rods, weekly balance calibration verification, and periodic container volume confirmation. Containers should be inspected for damage, wear, or buildup that could affect accuracy. Balances require calibration with certified weights and environmental stability during use. Tamping rods must remain straight and undamaged, while strike-off plates should maintain straight edges. Documentation of all maintenance activities supports quality assurance requirements and identifies potential equipment issues before they affect test results.
How do temperature variations affect unit weight measurements?
Temperature affects unit weight measurements through multiple mechanisms including concrete volume changes, aggregate thermal expansion, and balance accuracy variations. Hot concrete may exhibit slightly lower unit weights due to thermal expansion, while cold concrete becomes denser. Digital Business Cards Extreme temperatures can affect balance calibration and measurement stability. Testing should occur at moderate temperatures when possible, and significant temperature variations should be noted in test documentation. Climate-controlled testing environments provide the most consistent conditions for accurate measurements.
